What is TriAngles?
(Introduction video)

TriAngles is a high precision 3D circumference scanner that uses a turn table to look "around" the object being scanned. Making a 360 degrees turn around the object means that it captures most of the object in a single pass. This minimizes the need to stitch several seperate scans together as found with most other types of scaners. Once captured you can then view, modify and store the 3D data on you PC. The data can be exported to graphics and CAD applications for further post processing.

Features
  • Scan type: Circumference
  • Geometry and texture
  • Scan speed (typical) <60 sec
  • Object size (typical) 1~20 cm
  • Object weight (typical) 0~2 kg
  • Scan principle: Non contact structured light
  • Export formats: XYZ, RAW, DXF, STL, VRML and OBJ

Want to scan larger objects? Contact us for the larger table.

App

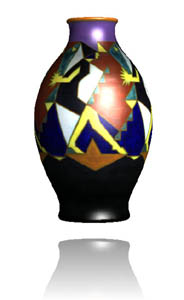

What can I scan?

If your laser or projection device can illuminated it with a thin line and your camera can capture this then there is a solid chance that TriAngles can scan it in. And, TriAngles includes many features to make the process as easy as possible while still allowing advanced users to set things the way they want.

How does it work?

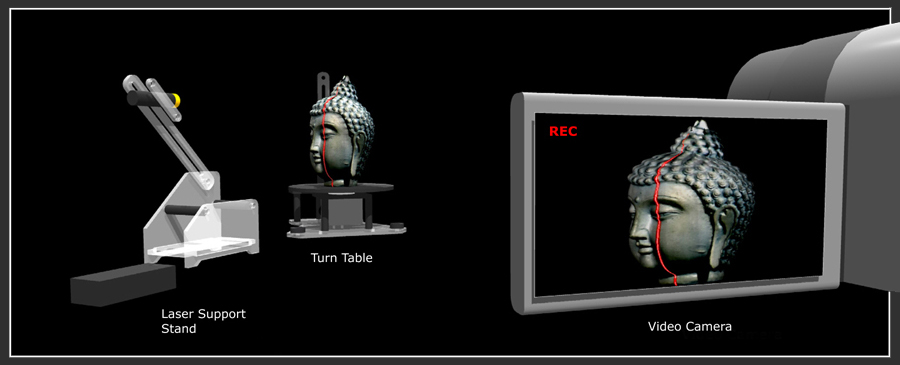

The laser line projected by the laser on the object is captured by the camera while the turntable rotates to allow capturing the full 360 degrees. The camera image is processed by the TriAngles software to create a virtual representation of the object.

The process

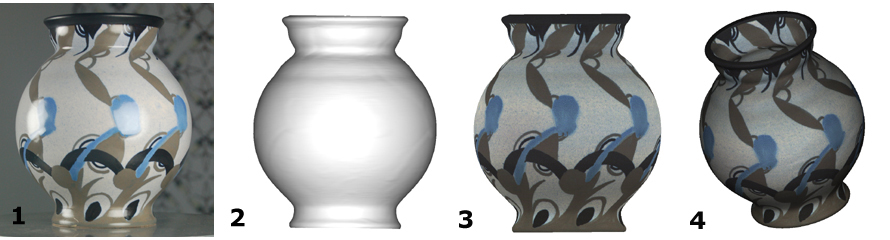

Scanprocess

1. Orginal object
2. Scan is made of the geometry of the object
3. A high resolution scan is made of the texture or color of the object
4. The texture and the geometry scans are combined and shaded

Check the tutorial videos for aditional information

Minimum Requirements

  • Pentium 4 CPU 2GHz
  • 1024mb System Memory
  • 3GB free hard disk space
  • 64mb OpenGL Supported Graphics Card
  • Windows 2000/XP/Vista
  • FireWire, USB or Composite in video interface
  • DirectX 8 or higher

Product Matrix

Personal Basic Complete* Bundle
Software updates
Yes Yes Yes Yes
Native File Saving
Yes Yes Yes Yes
Stand alone operation
Yes Yes Yes Yes
Save full frame
Yes Yes Yes Yes
Support USB interface
- Yes Yes Yes
File Export
- Yes Yes Yes
Commercial Use
- Yes Yes Yes
Turn Table and Laser
- - Yes Yes
VRMesh Studio
- - - Yes

download $175,- $365,- inquire

*Assembled kit add $30,-

Prices are in US Dollars and relate to USA region. Prices may vary between countries and regions due to exchange rates, taxes and other costs. Please contact you nearest distributor for exact details.

Additional Materials required

  • Camcorder or good web cam

HD 1081i/p type camcorders not tested
TriAngles was successfully tested on an Apple Mac using Bootcamp running Windows XP
